It’s hard to describe the rush you get from playing a cranked, high-powered tube amp wide open, but once you feel it, you’ll never forget it. There’s a certain magic that stirs up something deep inside your soul.
I found that out for myself in the late ’80s with my first serious rig: a Carvin X100B half-stack. I soon realised that low volume settings were dull and lifeless, but with the volume cranked wide open, it was an absolute tone beast! The compression, the bloom and the authority of every note was just glorious.
But it didn’t take long for the noise complaints to roll in. First from the neighbours and then eventually from club sound guys who couldn’t fully appreciate my grandiose ‘wall of sound’.
Sadly, pushing a high-wattage valve amp to its sweet spot isn’t always welcome. Unless you’re playing arenas or you’re out in the middle of a corn field, running a 100-watt head wide open just isn’t practical. I eventually stumbled into the world of power attenuators and it completely changed how I chased tone from that moment on.
An attenuator is a load device that sits between your amp and speaker, absorbing some of the amp’s power before it reaches the speaker. This lets you push the valves into that rich, saturated sweet spot without the deafening volume.
Early attenuators, introduced decades ago, were basic and often harsh on tone. They controlled volume by converting power into heat, but they didn’t sound very good.
Sure, they brought volume down, but they often sucked the life out of your tone in the process. Fortunately, these once crude devices have since evolved from ‘tone killers’ into refined tools that are now indispensable for many players.

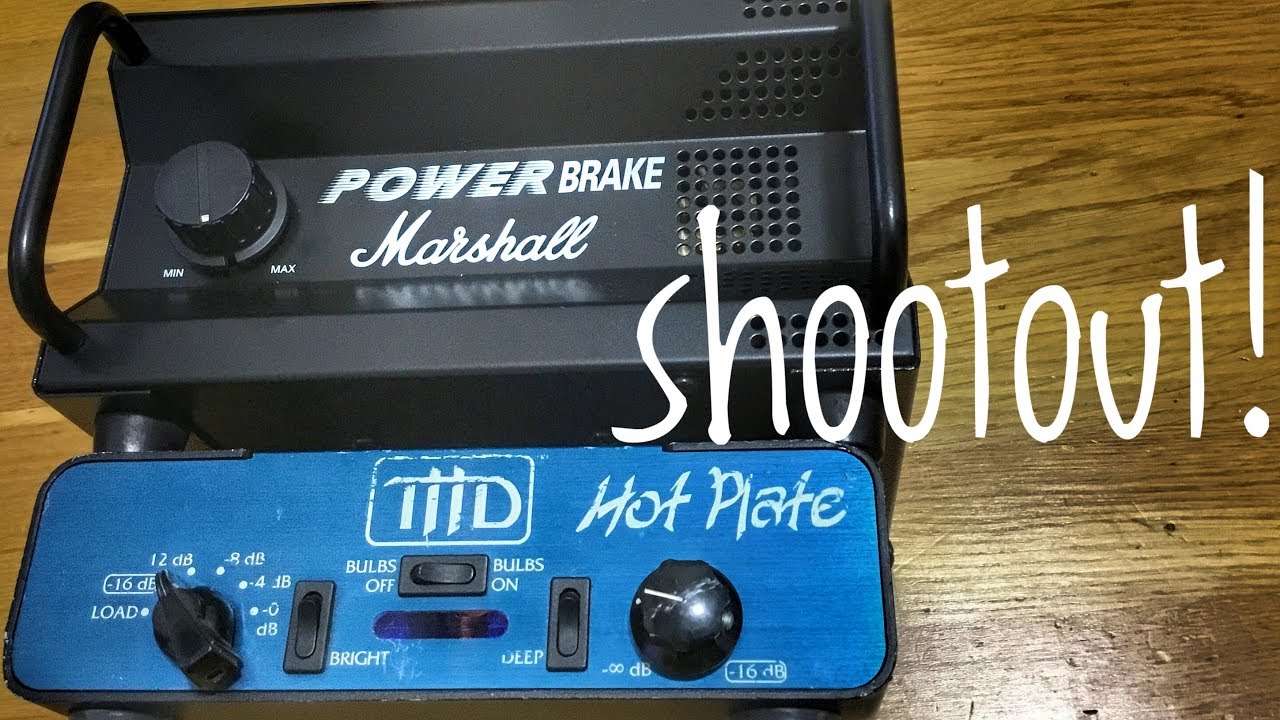

My first experience with an attenuator was the THD Hot Plate, introduced in the 1990s. I was amazed that you could take a cranked non-master-volume Marshall Super Lead and play it at a level that didn’t make your ears bleed. But there was a compromise. Although it likely outperformed earlier attenuator designs, it didn’t quite deliver the same satisfying feel or dynamics of a wide-open amp.
For many players, the compromise was well worth it and the Hot Plate became one of the most iconic and widely used power attenuators in the world. The Scholz Research & Development Power Soak and the Marshall Power Brake were also early attenuator designs that gained some popularity but suffered similar ‘side effects’ as their predecessors.
Amp’s Best Friend
Today, modern attenuators come in a variety of designs and many are far more transparent, versatile and feature‑rich than their predecessors. At the core, there are three main types of attenuator designs: resistive, reactive and loadbox/cab-sim hybrids.
Today, modern attenuators come in a variety of designs and many are far more transparent, versatile and feature‑rich than their predecessors
Resistive attenuators are the simplest of the bunch and include devices like the Bugera PS1 or early Weber Mass units. They reduce volume by converting your amp’s output into heat using resistors. These are typically more affordable, but they can lack the complex impedance interaction that makes a valve amp feel and respond naturally. The tone can sometimes sound flat or lose some dynamics, especially at lower volumes.
Then you have reactive attenuators, which are more advanced and arguably sound more musical. They simulate the dynamic behaviour of a speaker’s impedance curve so your amp still ‘sees’ a load that feels like a real speaker.

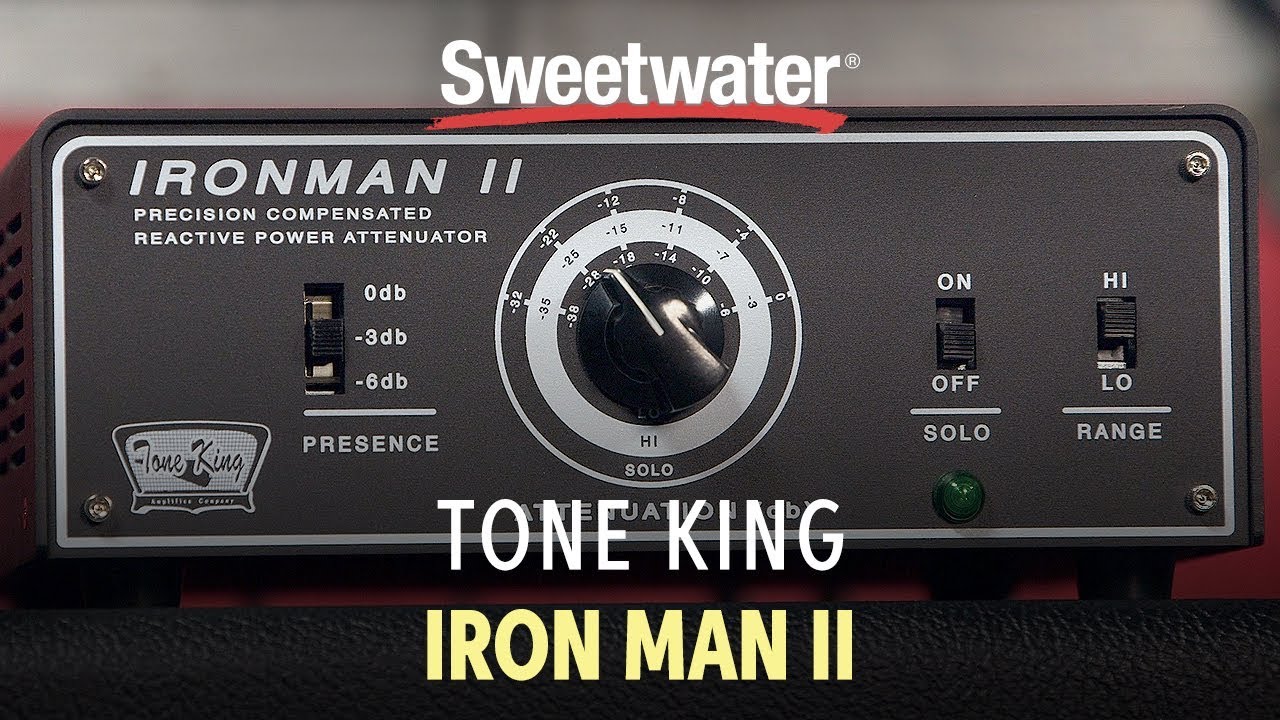

Units like the Fryette Power Station and my personal favourite, the Tone King Ironman II, fall into this camp. These tend to retain more of your amp’s personality and natural feel, especially when playing at very low volumes.
A major innovation in recent years has been the development of hybrid loadboxes with built-in impulse response (IR) technology (loadbox/cab-sim hybrids). Units like the Two Notes Torpedo Captor X, Universal Audio OX and Suhr Reactive Load IR serve dual roles: they manage amp volume and deliver convincing cabinet simulations for direct recording or live use.
This eliminates the need for mics and speaker cabinets entirely, while preserving the authenticity of your tone. You can practice at bedroom levels with your favourite amp or capture glorious, cranked tones straight into a DAW. It’s the ultimate balance of raw tube amp dynamics at controllable volumes.
So which amps benefit the most from an attenuator? Pretty much any valve amplifier with more than 15 watts that you want to push into its sweet spot.
Vintage Marshall Plexi Super Leads, which sound glorious fully cranked, are textbook candidates. So are Fender Twins, which can be ice-picks at lower volumes but deliver creamy, blooming cleans and edge-of-break-up textures when pushed.
Even high-gain beasts like Mesa/Boogies and Soldanos can benefit, especially if you’re trying to tame stage volume without resorting to preamp-only distortion.
Previously only accessible to pro guitarists, attenuators are now within reach of anyone and many models are quite affordable.
Of course, some purists will argue that an attenuated amp will never feel quite the same as a roaring stack moving air, and you also run the risk of wearing out your power tubes prematurely. They’re not entirely wrong. Attenuators are not transparent, but, in my book, the small trade-off is worth it for the convenience, control and tonal access you gain.
Beware: there’s a big difference in how various attenuators sound and feel. Reactive load designs have become the preferred standard, but there’s still a wide tonal gap between models, not to mention a diverse range of features. So, which one is best? Well, that’s for you to decide. Do your research and try out as many as possible.
Attenuators are like fine-tuned ‘sweet spot’ knobs, letting you drive your tubes hard while keeping the volume in check. They let you tap into the full flavour, richness and depth of your amp’s tone at any volume. If you love your tube amp but fear your volume knob, get yourself an attenuator.
